Industrial 1G/10G SFP+ OEO with 3R Repeater Ethernet Media Converter
Overview
The ETH-IMC2402-OEO is an industrial-grade 1G/10G OEO converter with 3R repeater
and Ethernet media converter functions. Designed for harsh environments (-40°C to 80°C),
it supports fiber-to-fiber and fiber-to-copper conversion, long-distance transmission up to
120km, and wavelength conversion for DWDM/CWDM applications. Ideal for backbone
networks, data centers, and telecom environments.
Features
3R function: Regeneration, Reshaping, Re-timing
Supports 1.25G/10G data rate switching via DIP switch
Fiber-to-fiber 10G OEO repeater & wavelength conversion
Works as 1G Ethernet fiber-to-copper media converter
Hot-swappable SFP+ ports with full LED status display
Rugged IP40 aluminum case with DIN-Rail/Wall-mount
Wide operating temperature: -40°C to 80°C
Redundant 12~48VDC power input with protection
Technical Indexes
| Performance Data | Technical Indexes |
| Equipment function | 3R Repeater |
| Transmission Speed | 10G: 8.5Gb/s-11.7Gb/s |
| Protocols | 8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
| Interface Type | SFP+ to SFP+ |
| Transmission Distance | SFP+ module: up to 80km |
| Maximum Packet Forwarding Rate | 14,880,950/S |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Ethernet Media Converter Specifications |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control |
| Work Mode | 10/100/1000BASE-T to 1000BASE-SX/LX |
| Port Type | SFP to RJ45 |
| Network Cables | Twisted-pair
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module) |
| Electrical and Mechanical |
| Input Power | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption | 8W Max |
| Protection |
| Power Input Overload | Automatic Resettable |
| Reverse Polarity | Present |
| DIP Switch |
| 4-digit DIP switch function | DIP | Function | Settings |
| SW 1 | 1.25G/10G | ON - 1.25~8.5G | OFF - 10.3G or 14.025G |
| SW 2 | Reserved | ON - Reserved | OFF - Reserved |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved |
| LED Indicators: |
| PWR | Power Status |
| FX1 | SFP Port-1 |
| FX2 | SFP Port-2 |
| L/A | TP LINK/ACT |
| Dimensions (WxDxH) | 95 x 70 x 30 mm |
| Weight | 0.25Kg |
| Casing | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| ETH-IMC2402-OEO | Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
Application

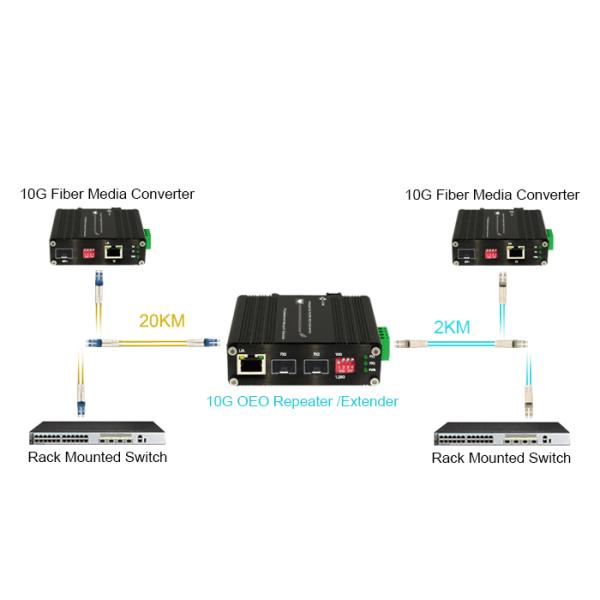

Application I: 1G/10G OEO Converter (3R Repeater)

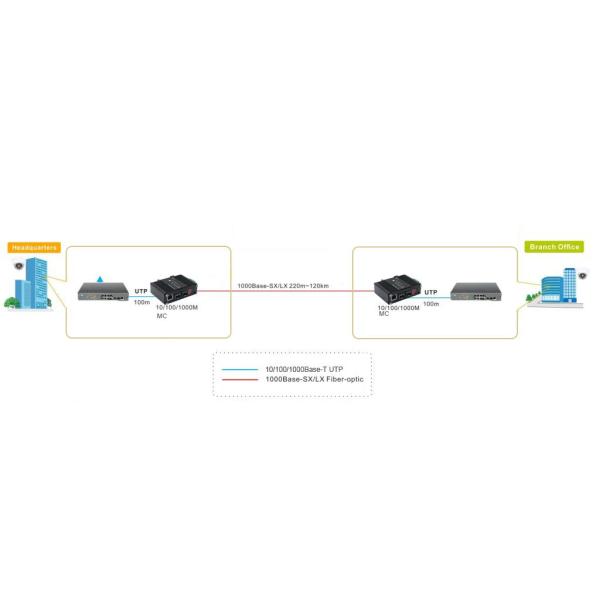

Application II: fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter
