8 Port 10/100/1000BASE-T + 2 Port 1000BASE SFP Auto-sensing IEEE 802.3af/at POE/POE+ and 24V passive POE Switch
Unmanaged PoE Switch Overview
The LNK-A208GP-SFP is a high-performance 8-port Gigabit Power over Ethernet switch
featuring 4 x 10/100/1000Base-TX RJ45 ports with dual power options (IEEE 802.3af/at Power over
Ethernet Plus and 24V Passive Power over Ethernet) and 2 x 1000Base-FX SFP fibre slots
for 1G uplinks. This plug-and-play switch has been designed for IP surveillance
and wireless deployments. It ensures stable power delivery and long-distance fibre connectivity,
making it perfect for remote IP cameras, WiFi APs and industrial networks.
Unmanaged PoE Switch Features
- Auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE support
- 10/100/1000 Mbps, full/half-duplex, auto-negotiation, Auto MDI/MDI-X
- One external 1000Base SFP slot for fiber uplink expansion
- Comprehensive protection features: overcurrent, short-circuit, over-voltage, under-voltage,
- power limitation, and Hi-Power PD safe function
- Automatically distinguishes between Active PD and Passive PD devices
- Total PoE power budget up to 150W
- Flexible installation options: wall-mount or desktop/shelf mounting
Unmanaged PoE Switch Technical Indexes
| Ethernet & Fiber |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X (Fiber) |
| IEEE802.3x Flow Control |
| IEEE802.1q VLAN Bridge Operation |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Processing Type | Store-and-Forward (2.5M cache) |
| System Mode | Standard/VLAN Isolation |
| Switch Fabric | 20 Gbps |
| MAC address | 8K |
| Forward Filter Rate | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Ethernet Port | 8 x 10/100/1000Mbps RJ45 Ethernet Ports |
| Optical Port | 2 x SFP 1000Base-FX |
| Electrical and Mechanical |
| Input Power (AC/DC 2 power) | 48~57VDC or 100~265VAC 50/60Hz |
| Power Consumption | 20W Max. (PoE not in use) |
| 150W Max. (PoE in use) |
| LED Indicators |
| Power | Power Status |
| 9-10 | Port Fiber |
| PoE Green | 48V PoE |
| PoE Orange | 24V PoE |
| Link Orange | 1000M Speed |
| Link Green | 10/100M Speed |
| PoE |
| Standard | IEEE802.3af/at |
| Port | RJ45 Port1~Port4 |
| Max. Power per port | 30W Max per port (Alternative B mode) |
| PoE Output Auto-sensing | Support both Active and Passive PD without setting |
| PoE Interfaces | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Function | Support Overcurrent, Shortcurrent, OverVOL, UnderVOL, Power Limitation, Safe Function HiPower PD star BOOT, After Boot |
| Mechanical |
| Dimensions (L x W x H) | 210 x 140 x 45 mm |
| Weight | 1.5Kg |
| Casing | Metal Case |
| Mounting options | Wall-mount and desk/shelf mounting |
| Environmental |
| Operation Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001,CE, FCC, RoHS |
Unmanaged PoE Switch Ordering Information
| Model | Description |
| LNK-A208GP-SFP | Auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE Switch: 8-Port 10/100/1000BASE-T + 2-Port 1000BASE SFP |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Wall-mount and desk/shelf mounting |

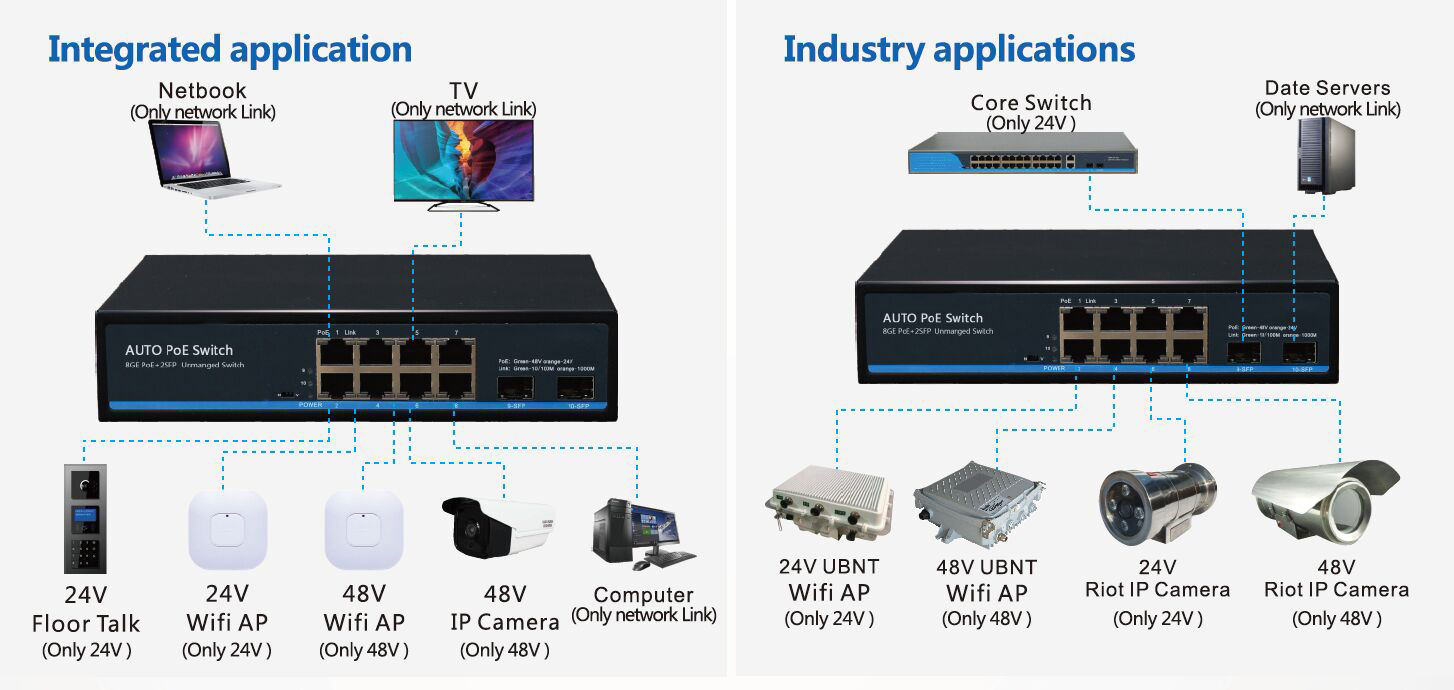

Unmanaged PoE Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
