Mini Industrial 100FX to 2x10/100 PoE++ Media Converter 90W -40~75°C
Overview
The LNK-IMC1200P90 Series is a rugged industrial media converter that bridges 1-Port
100Base-FX fiber with 2-Port 10/100Base-T Ethernet, delivering up to 90W PoE++ per port
in compliance with IEEE802.3bt. Housed in a durable aluminum casing and designed for
-40°C to 75°C operation, it ensures reliable performance in demanding environments. Ideal
for powering high-power devices such as PTZ cameras, wireless APs, and industrial
terminals.
Features
1-Port 100Base-FX SC to 2-Port 10/100BASE-T media conversion
IEEE802.3bt PoE++ up to 90W per port, backward compatible with PoE/PoE+
Hardened aluminum case, DIN-Rail or wall-mount installation
Wide operating temperature range: -40°C to 75°C
Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
Store-and-forward switching with 128K buffer and 1K MAC table
Supports full/half-duplex and auto MDI/MDI-X
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3x Full duplex and flow control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| IEEE802.3bt Power over Ethernet |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Address Table Size | 1K MAC Addresses |
| Interface |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, 2-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 185W Max. |
| LED Indicators: |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC1200P90 | Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1200P90-20 | Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1200P90S-20 | Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |

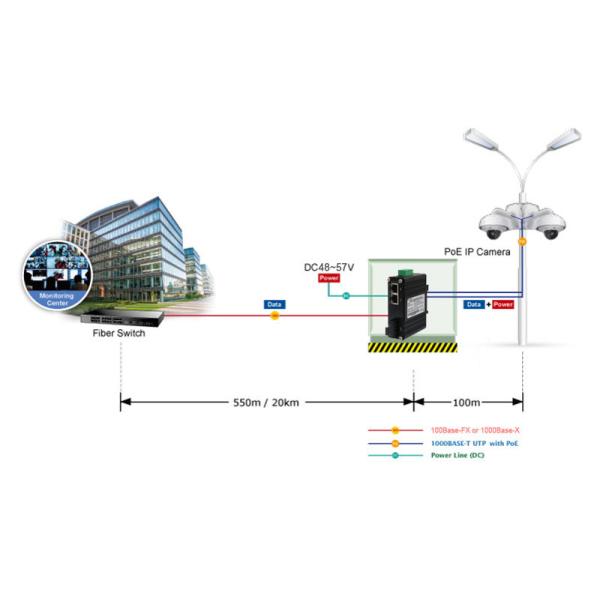

Application
