Mini Industrial 2xFast Ethernet to 100FX Media Converter -40~75°C
Overview
The LNK-IMC1200 Series is a compact industrial-grade media converter that bridges 2-Port
10/100BASE-T Ethernet with 1-Port 100Base-FX fiber. Designed for harsh environments, it
features a wide -40°C to 75°C operating range, rugged aluminum housing, and flexible
DIN-rail or wall-mount installation. With Energy Efficient Ethernet and store-and-forward
switching, it ensures reliable, low-power, and stable network performance for industrial and
outdoor applications.
Features
Converts 2 x 10/100BASE-T RJ45 to 1 x 100Base-FX SC fiber
Supports full/half-duplex and auto MDI/MDI-X
Energy Efficient Ethernet (IEEE 802.3az) for reduced power usage
Rugged aluminum case for industrial-grade durability
Wide operating temperature: -40°C to 75°C
Flexible DIN-rail and wall-mount installation
Low power consumption, max 5W
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3x Full duplex and flow control |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Address Table Size | 1K MAC Addresses |
| Interface |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| SPD: | Ethernet Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC1200 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1200-20 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1200-S20 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |

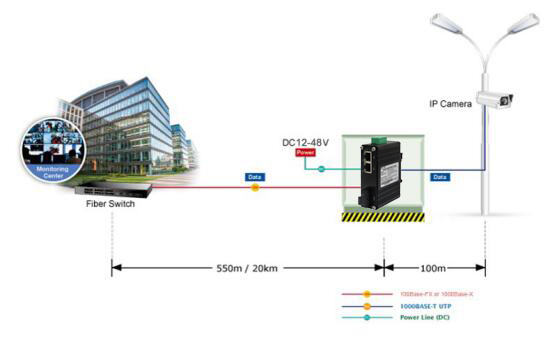

Application
