Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Overview
The LNK-IMC10FST Series is a rugged, industrial-grade media converter that seamlessly bridges
10Base-T Ethernet to 10Base-FL fiber optic networks, supporting both single-mode and multimode
fiber with transmission distances up to 20,000 meters.
Key Features:
✔ Industrial Durability – Operates in extreme temperatures (-40°C to 75°C) with a rugged aluminum
housing for harsh environments.
✔ Auto-Sensing UTP Port – Eliminates crossover cable hassles by automatically detecting and
adapting to MDI/MDI-X (works with straight or crossover cables).
✔Flexible Connectivity – Supports half-duplex & full-duplex modes for smooth integration with switches,
NICs, and legacy Ethernet devices.
✔ Easy Installation – DIN rail or distribution box mounting for quick deployment in industrial networks.
Why Choose This Converter?
- Extend 10 Mbps Ethernet over long distances with fiber reliability.
- No manual configuration—plug-and-play operation.
- Built for factory floors, outdoor installations, and demanding industrial applications.
Upgrade your network with E-link’s hardened fiber media converter—designed for performance, durability,
and hassle-free connectivity.
Features
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Complies with 802.3 10Base-T and 10Base-FL standards
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
► Supports 802.3x Flow control
► -40°C to 80°C (-40°F to 176°F) operating temperature.
► Supports Wall-mount and DIN-Rail installation

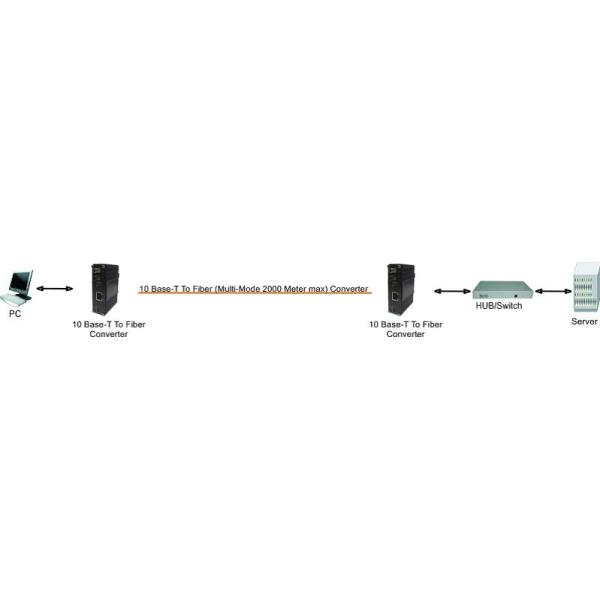

Application
Techinical Indexes
| Ethernet |
| Standards: | IEEE 802.3 |
| 10 Base-T |
| 10 Base-FL |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3x Full duplex and flow control |
| Conversion Means: | Store and Forward mode or Cut-Through mode |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| Wavelength: | 850nm |
| Buffer Space: | Built in 128Kb RAM for data buffer |
| Flow Control: | Full duplex: flow control; Half duplex: back pressure |
| Cable Length: | 50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL 100 meters max. for UTP 2000 meters max. for fiber optic Multi-mode |
| Transmission type: | Base band |
| Connection switch: | 2-position 10Base-T switch on RJ-45 side (hub or W/S) |
| Interface |
| Connector: | 1x RJ45 10Base-T |
| Optical Port: | c |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: |
| PWR: | Power Status |
| ACT: | Data LINK Status |
| TP: | Ethernet Status |
| FL: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC10FST-MM | Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
